Specifications

Filter Rating 40 micron
Material Bronze/Sintered Bronze
Port Size 1/8 in MNPT
Pressure Rating 145 psi
Series S86
Temperature Rating 0 to 149 deg C

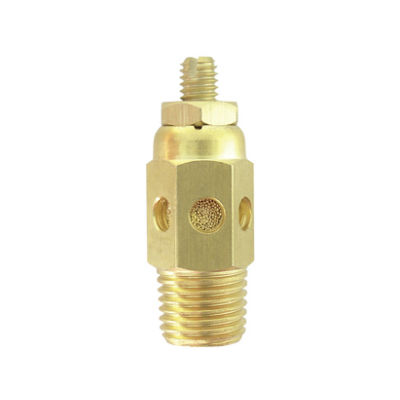

Topring 86.300 1/8 NPT Sintered Bronze Male Pipe Speed Control Muffler / Filter

SB#56-00058
Special Order-Shipping Times Vary

WEB PRICE:

$7.76/EA/EA

Speed control mufflers provide safe airflow regulation at an acceptable sound level on exhaust ports of air control valves. Tough, cellular, sintered Bronze structure, secured to bronze body, ensures desired combination of filtering and muffling with adjustable flow. Using the external adjustment screw, the opening of the orifice can be adjusted from closed to high flow, as required.

  • Air Flow at 90 PSI : 23 SCFM
  • Maximum Working Pressure: 145 PSI
  • Compact Size and Easy To Install
  • Adjustable calibrated conical valve provides precise airflow adjustment for sensitive pressure applications and for vacuum relief on vacuum systems
  • Locks securely with a lock nut. The muffler cannot be inadvertently tampered with, removed or blocked
MIN QTY: 10

86.3
S86
Topring
