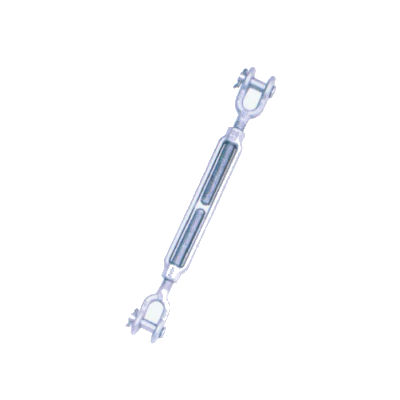

Crosby HG-228 1/2X9 Inch Turnbuckle Jaw & Jaw Galvanized 1032572
Specifications

Closed Length 17.43 in
End/End Jaw/Jaw
Finish Hot Dipped Galvanized
Material Steel
Series HG-228
Take Up 9 in
Thread Diameter 1/2 in
Working Load 2200 lb

Crosby HG-228 1/2X9 Inch Turnbuckle Jaw & Jaw Galvanized 1032572

SB#48-22695
Special Order-Shipping Times Vary
Crosby HG-228 1/2X9 Inch Turnbuckle Jaw & Jaw Galvanized 1032572

WEB PRICE:

$177.93/EA/EA

HG-228 Jaw & Jaw Turnbuckles End Fittings Are Quenched And Tempered Or Normalized Bodies Heat Treated By Normalizing.Meets Or Exceeds All Requirements Of ASME B30.26 Including Identification, Ductility, Design Factor, Proof Load And Temperature Requirements. Importantly, These Turnbuckles Meet Other Critical Performance Requirements Including Fatigue Life, Impact Properties And Material Traceability. Lock Nuts Available For All Sizes (Not Included)

  • Working Load Limit: 2200Lbs
  • Forged jaw ends are fitted with bolts and nuts for 1/4In. through 5/8In., and pins and cotters on 3/4In. through 2-3/4In. sizes
  • Modified UNJ thread on end fittings for improved fatigue properties.
  • Body has UNC threads.
  • Proof Load is 2.5 times the Working Load Limit. Ultimate Load is 5 times the Working Load Limit
MIN QTY: 1

1032572
HG-228
Crosby
