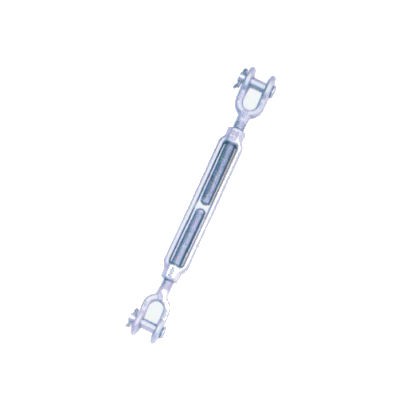

Crosby HG-228 3/4X18 Inch Turnbuckle Jaw & Jaw Galvanized 1032732
Specifications

Closed Length 30.08 in
End/End Jaw/Jaw
Finish Hot Dipped Galvanized
Material Steel
Series HG-228
Take Up 18 in
Thread Diameter 3/4 in
Working Load 5200 lb

Crosby HG-228 3/4X18 Inch Turnbuckle Jaw & Jaw Galvanized 1032732

SB#48-02197
Special Order-Shipping Times Vary
Crosby HG-228 3/4X18 Inch Turnbuckle Jaw & Jaw Galvanized 1032732

WEB PRICE:

$423.25/EA/EA

HG-228 Jaw & Jaw Turnbuckles End Fittings Are Quenched And Tempered Or Normalized Bodies Heat Treated By Normalizing.Meets Or Exceeds All Requirements Of ASME B30.26 Including Identification, Ductility, Design Factor, Proof Load And Temperature Requirements. Importantly, These Turnbuckles Meet Other Critical Performance Requirements Including Fatigue Life, Impact Properties And Material Traceability. Lock Nuts Available For All Sizes (Not Included)

  • Working Load Limit: 5200Lbs
  • Forged jaw ends are fitted with bolts and nuts for 1/4In. through 5/8In., and pins and cotters on 3/4In. through 2-3/4In. sizes
  • Modified UNJ thread on end fittings for improved fatigue properties.
  • Body has UNC threads.
  • Proof Load is 2.5 times the Working Load Limit. Ultimate Load is 5 times the Working Load Limit
