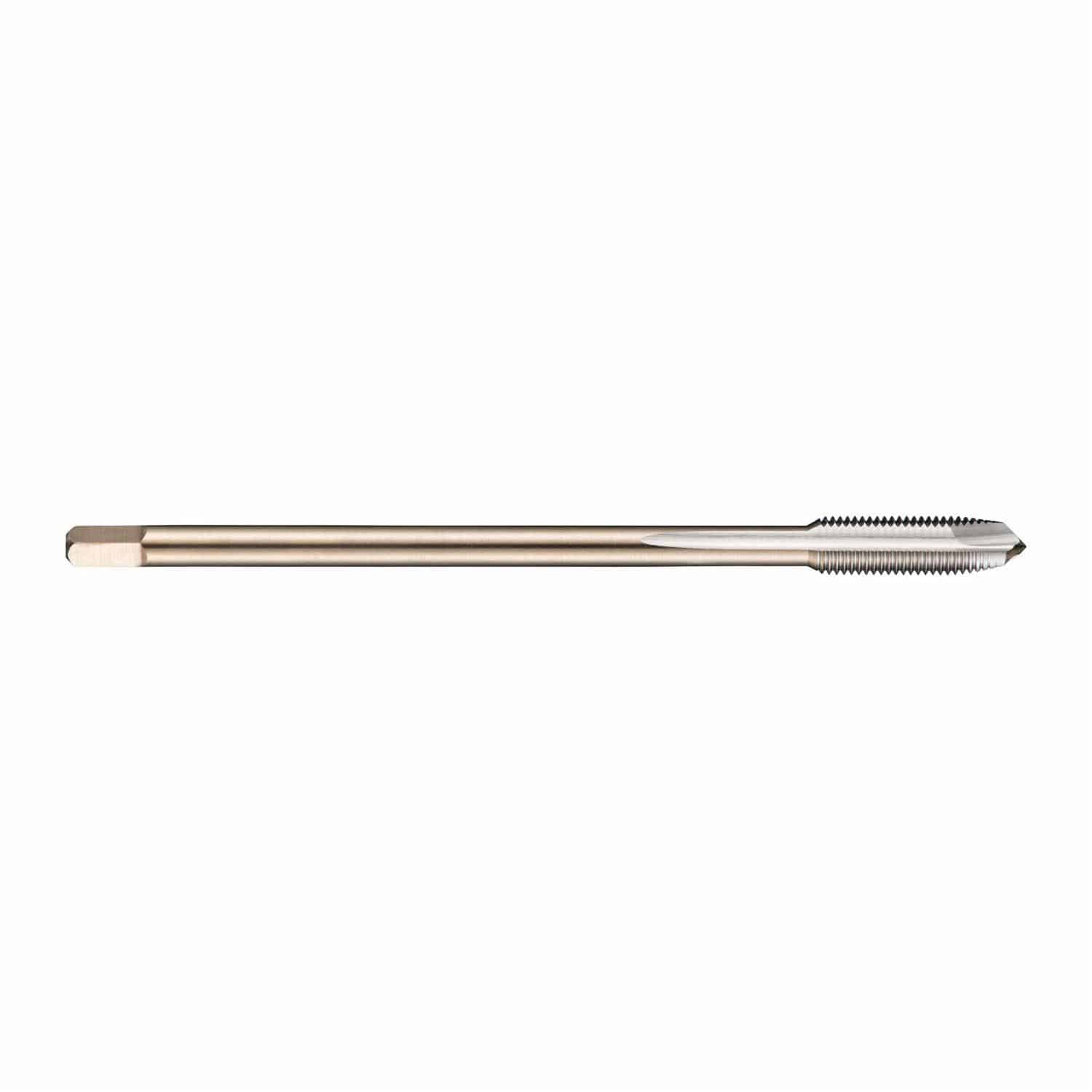

Dormer EP10 16mm - 1.5 MTT-X 3 Flute Spiral Point Machine Tap 5973478

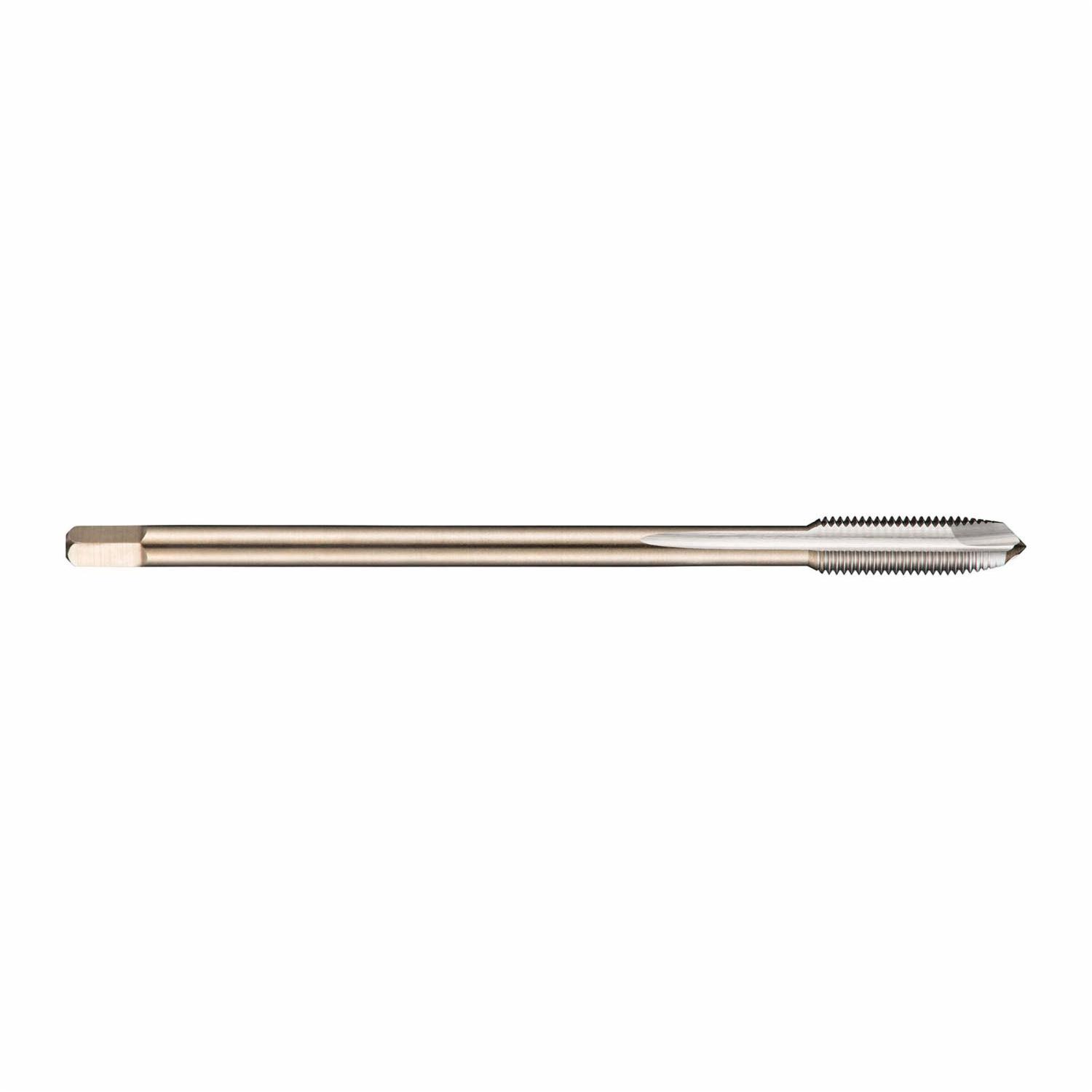

Dormer EP10 16mm - 1.5 MTT-X 3 Flute Spiral Point Machine Tap 5973478 - Image 2

Specifications

Chamfer Type Plug

Class of Fit 6H

Cutting Direction Right Hand

Finish/Coating Bright/Bronze Oxide

Material HSS-E

Material Application Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium and Synthetic Materials

Measurement System Metric

Number of Flutes 3

Overall Length 100 mm

Series EP10

Shank Diameter 12 mm

Thread Length 21 mm

Thread Limit D7

Thread Size M16x1.5

Thread Standard Fine

Type High Performance

Dormer EP10 16mm – 1.5 MTT-X 3 Flute Spiral Point Machine Tap 5973478

Name: Dormer EP10 16mm - 1.5 MTT-X 3 Flute Spiral Point Machine Tap 5973478
Brand: Dormer
SKU: 20-12556
Availability: InStock

SB#20-12556

Special Order-Shipping Times Vary

WEB PRICE:

$94.22/EA/EA

Spiral Point Tap With Chamfer Form B With A 3.5-5Xp Plug Lead, For Iso-Metric Fine Thread M16 With 1.50 Mm Pitch And 6H Class Of Fit, Dimensions According To Din 374 Standard With 12.0Mm Shank And 9.0Mm Square Drive, Powder Metallurgical Hss-E With Bright Finish For 2.5Xd Through Hole Threading In Free Machining, Plain Carbon And Alloy Steel And Wrought Or Cast Aluminum

Premium substrate for through hole tapping in tough or abrasive materials
Bronze oxide body and shank reduces rust and corrosion
Bright finish flutes improve chip flow in soft and non-ferrous materials
