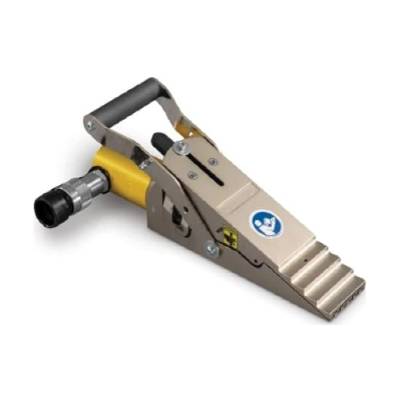

Enerpac LW-16 Hydraulic Vertical Lifting Wedge 16 Ton 133055
Specifications

Maximum Operating Pressure (psi) 10000
Maximum Spread (in) 0.83
Power Source Hydraulic
Maximum Lifting Force (ton) 16
Spreading Force (imperial tons) 16
Capacity (imperial tons) 16
Capacity (kN) 157
Stroke (in) 0.83
Minimum Clearance Gap (in) 0.39
Maximum Lift Per Stage 21
Maximum Lifting Height (in) 2.02
Maximum Lifting Height Using Stepped Block 2.72
Tip Clearance (in) 0.39
Oil Capacity (in3) 4.75

Enerpac LW-16 Hydraulic Vertical Lifting Wedge 16 Ton 133055

SB#284-00576
Special Order-Shipping Times Vary
Enerpac LW-16 Hydraulic Vertical Lifting Wedge 16 Ton 133055

WEB PRICE:

$6,108.31/EA/EA

Choose The LW-Series Vertical Lifting Wedge When You Need To Lift And Lower Heavy Loads Of Up To 16-Tons With A Stable Motion Without Slippage. A Minimum Insertion Gap Of 0.39″ (10 Mm) Is Needed Which Expands Up To 2.02″ (51.5 Mm). Retraction Force Is Supplied By The Single-Acting Spring Return Cylinder. The Maximum Operating Pressure Is (10000 PSI 700 Bar).

  • The included SB2 stepped safety block provides reassuring support, and can also be used to increase the lifting height to 2.72" (69 mm). The LWB1 is a larger stepped block available as an option.
  • A compatible hydraulic pump is needed to operate the LW16. The Enerpac P392 Hand Pump, or the P392FP Foot Pump are ideal.
  • Alternatively, choose the LWC16 Vertical Lifting Wedge, which includes an integrated hand pump.
MIN QTY: 1

133055
Enerpac
Technical Data Sheet
