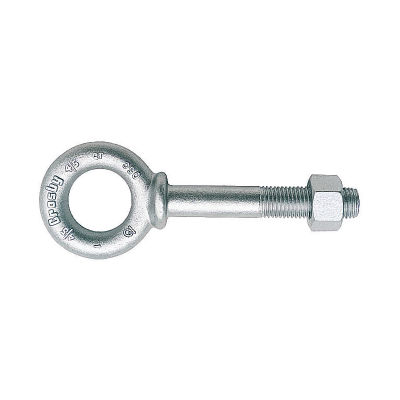

Crosby G-277 1 1/4X8 Inch Forged Shoulder Eye Bolt With Nut Galvanized 1045336

Specifications

Diameter - Thread Size 1-1/4 in

Finish Hot Dipped Galvanized

Inside Eye Diameter 2-1/2 in

Material Forged Steel

Measurement System Imperial

Outside Eye Diameter 4-1/2 in

Overall Length 12.72 in

Series G-277

Shank Length 8 in

Thread Length 4 in

Thread Type UNC

Working Load 21000 lb

Crosby G-277 1 1/4X8 Inch Forged Shoulder Eye Bolt With Nut Galvanized 1045336

Name: Crosby G-277 1 1/4X8 Inch Forged Shoulder Eye Bolt With Nut Galvanized 1045336
Brand: Crosby
SKU: 38-01206
Availability: InStock

SB#38-01206

Special Order-Shipping Times Vary

WEB PRICE:

$333.80/EA/EA

Forged Steel Quenched & Tempered Shoulder Type Machinery Eye Bolt. Recommended For In-Line Pull. Fatigue Rated At 1-1/2 Times The WLL at 20000 Cycles. Meets Or Exceeds All Requirements Of ASME B30.26

Working Load Limit 21000 Lbs
Ultimate Load is 5 times the Working Load Limit.
Maximum Proof Load is 2 times the Working Load Limit
All bolts are hot dip galvanized after threading (UNC). Comes with hot dip galvanized heavy hex nut.
These meet other critical performance requirements including fatigue life, impact properties and material traceability not addressed by ASME B30.49

MIN QTY: 1

Crosby

1045336

G-277

Catalog
