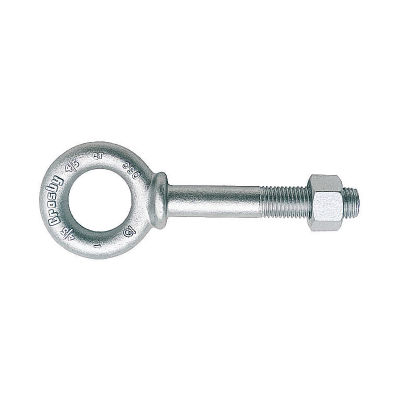

Crosby G-277 1/2X6 Inch Forged Shoulder Eye Bolt With Nut Galvanized 1045158

Name: Crosby G-277 1/2X6 Inch Forged Shoulder Eye Bolt With Nut Galvanized 1045158
Brand: Crosby
SKU: 48-21386
Price: 33.77 CAD
Availability: InStock

SB#48-21386

Special Order-Shipping Times Vary

WEB PRICE:

$33.77/EA/EA

Forged Steel Quenched & Tempered Shoulder Type Machinery Eye Bolt. Recommended For In-Line Pull. Fatigue Rated At 1-1/2 Times The WLL at 20000 Cycles. Meets Or Exceeds All Requirements Of ASME B30.26

Working Load Limit 2600 Lbs
Ultimate Load is 5 times the Working Load Limit.
Maximum Proof Load is 2 times the Working Load Limit
All bolts are hot dip galvanized after threading (UNC). Comes with hot dip galvanized heavy hex nut.
These meet other critical performance requirements including fatigue life, impact properties and material traceability not addressed by ASME B30.41

MIN QTY: 1

1045158

G-277
