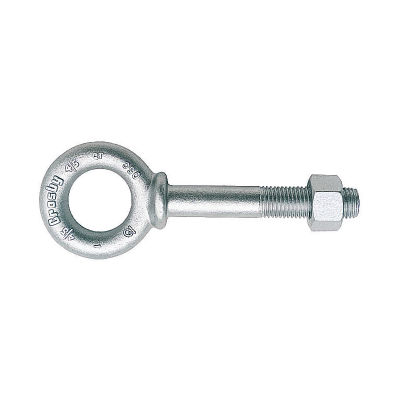

Crosby G-277 3/4X4 1/2 Inch Forged Shoulder Eye Bolt With Nut Galvanized 1045210
Specifications

Material Forged Steel
Coating / Finish Hot Dip Galvanize
Size 3/4X4-1/2
Diameter 3/4 In.
Length 4-1/2 In.

Crosby G-277 3/4X4 1/2 Inch Forged Shoulder Eye Bolt With Nut Galvanized 1045210

SB#38-01202
Special Order-Shipping Times Vary
Crosby G-277 3/4X4 1/2 Inch Forged Shoulder Eye Bolt With Nut Galvanized 1045210

WEB PRICE:

$53.91/EA/EA

Forged Steel Quenched & Tempered Shoulder Type Machinery Eye Bolt. Recommended For In-Line Pull. Fatigue Rated At 1-1/2 Times The WLL at 20000 Cycles. Meets Or Exceeds All Requirements Of ASME B30.26

  • Working Load Limit 7200 Lbs
  • Ultimate Load is 5 times the Working Load Limit.
  • Maximum Proof Load is 2 times the Working Load Limit
  • All bolts are hot dip galvanized after threading (UNC). Comes with hot dip galvanized heavy hex nut.
  • These meet other critical performance requirements including fatigue life, impact properties and material traceability not addressed by ASME B30.44
MIN QTY: 1

1045210
G-277
