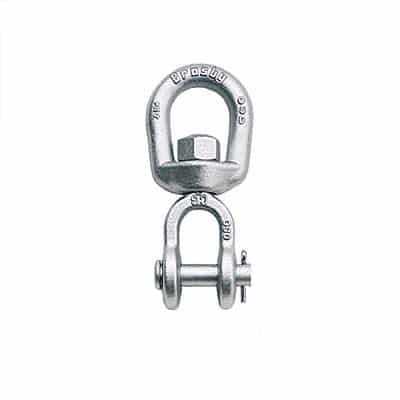

Crosby G-403 3/8 Inch Jaw End Forged Swivel Galvanized 1016439

Specifications

Eye Length 0.94 in, 1.06 in

Eye Width 1.25 in, 0.63 in

Finish Hot Dipped Galvanized

Load Capacity 2250 lb

Material Forged Steel

Series G-403

Trade Size 3/8 in

Type Jaw End

Width Between Eyes 3.63 in

Crosby G-403 3/8 Inch Jaw End Forged Swivel Galvanized 1016439

Name: Crosby G-403 3/8 Inch Jaw End Forged Swivel Galvanized 1016439
Brand: Crosby
SKU: 16-25916
Availability: InStock

SB#16-25916

Special Order-Shipping Times Vary

WEB PRICE:

$69.22/EA/EA

Crosby G-403 Forged Swivels Are Positioning Devices And Are Not Intended To Rotate Under Load. Meets Or Exceeds All Requirements Of Asme B30.26 Including Identification, Ductility, Design Factor, Proof Load And Temperature Requirements. Importantly, These Links Meet Other Critical Performance Requirements Including Fatigue Life, Impact Properties And Material Traceability.

Quenched & Tempered.
Meet the performance requirements of Federal Specification RR-C-271G, Type VII, Class 3, except for those provisions required of the contractor.
