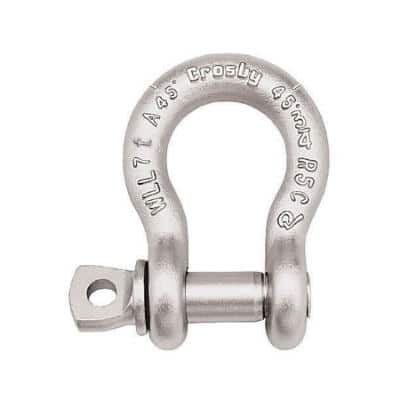

Crosby G-209A 1 1/8 Forged Alloy Screw Pin Anchor Shackle 15 Ton WLL Galvanized 1017604
Specifications

Body Material Forged Alloy Steel
Eye Outer Size 2.69 in
Finish Hot Dipped Galvanized
Inner Length 4-1/4 in
Inner Width 2.91 in
Load Capacity 15 ton
Opening Size 1.81 in
Overall Length 7.47 in
Overall Width 5.59 in
Pin Diameter 1-1/4 in
Pin Material Alloy Steel
Pin Type Screw
Series G-209A
Size 1-1/8 in

Crosby G-209A 1 1/8 Forged Alloy Screw Pin Anchor Shackle 15 Ton WLL Galvanized 1017604

SB#48-01325
Special Order-Shipping Times Vary
Crosby G-209A 1 1/8 Forged Alloy Screw Pin Anchor Shackle 15 Ton WLL Galvanized 1017604

WEB PRICE:

$204.99/EA

G-209A Screw pin anchor shackles meet the performance requirements of Federal Specification RR-C271F Type IVA, Grade B, Class 2, except for those provisions required of the contractor

  • Working Load Limit Meets performance requirements of Grade 8 shackles. Permanently Shown On Every Shackle
  • Forged Alloy Steel - Quenched And Tempered, With Alloy Pins.
  • Meets Or Exceeds All Requirements of ASME B30.26
  • Importantly, these shackles meet other critical performance requirements including impact properties and material traceability, not addressed by ASME B30.26.
  • Working Load Limit: 15 Ton
MIN QTY: 1

1017604
G-209A
