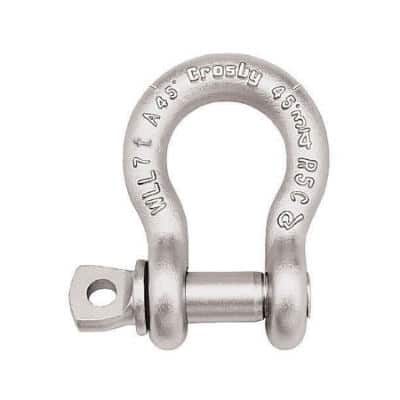

Crosby G-209A 3/8 Forged Alloy Screw Pin Anchor Shackle 2 Ton WLL Galvanized 1017450
Specifications

Body Material Forged Alloy Steel
Eye Outer Size 0.91 in
Finish Hot Dipped Galvanized
Inner Length 1-7/16 in
Inner Width 1.03 in
Load Capacity 2 ton
Opening Size 0.66 in
Overall Length 2.49 in
Overall Width 2.03 in
Pin Diameter 0.44 in
Pin Material Alloy Steel
Pin Type Screw
Series G-209A
Size 3/8 in

Crosby G-209A 3/8 Forged Alloy Screw Pin Anchor Shackle 2 Ton WLL Galvanized 1017450

SB#48-01318
Special Order-Shipping Times Vary
Crosby G-209A 3/8 Forged Alloy Screw Pin Anchor Shackle 2 Ton WLL Galvanized 1017450

WEB PRICE:

$25.57/EA

G-209A Screw pin anchor shackles meet the performance requirements of Federal Specification RR-C271F Type IVA, Grade B, Class 2, except for those provisions required of the contractor

  • Working Load Limit Meets performance requirements of Grade 8 shackles. Permanently Shown On Every Shackle
  • Forged Alloy Steel - Quenched And Tempered, With Alloy Pins.
  • Meets Or Exceeds All Requirements of ASME B30.26
  • Importantly, these shackles meet other critical performance requirements including impact properties and material traceability, not addressed by ASME B30.26.
  • Working Load Limit: 2 Ton
MIN QTY: 1

1017450
G-209A
Crosby
