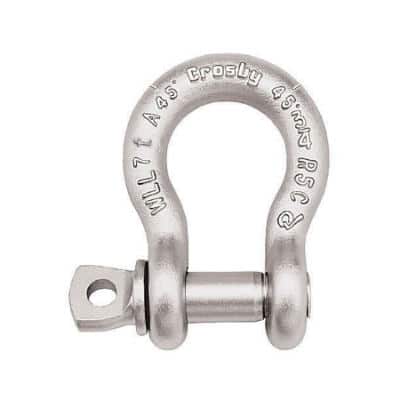

Crosby G-209A 5/8 Forged Alloy Screw Pin Anchor Shackle 5 Ton WLL Galvanized 1017516
Specifications

Body Material Forged Alloy Steel
Eye Outer Size 1-1/2 in
Finish Hot Dipped Galvanized
Inner Length 2-3/8 in
Inner Width 1.69 in
Load Capacity 5 ton
Opening Size 1.06 in
Overall Length 4.19 in
Overall Width 3.34 in
Pin Diameter 3/4 in
Pin Material Alloy Steel
Pin Type Screw
Series G-209A
Size 5/8 in

Crosby G-209A 5/8 Forged Alloy Screw Pin Anchor Shackle 5 Ton WLL Galvanized 1017516

SB#48-01321
Special Order-Shipping Times Vary
Crosby G-209A 5/8 Forged Alloy Screw Pin Anchor Shackle 5 Ton WLL Galvanized 1017516

WEB PRICE:

$56.35/EA

G-209A Screw pin anchor shackles meet the performance requirements of Federal Specification RR-C271F Type IVA, Grade B, Class 2, except for those provisions required of the contractor

  • Working Load Limit Meets performance requirements of Grade 8 shackles. Permanently Shown On Every Shackle
  • Forged Alloy Steel - Quenched And Tempered, With Alloy Pins.
  • Meets Or Exceeds All Requirements of ASME B30.26
  • Importantly, these shackles meet other critical performance requirements including impact properties and material traceability, not addressed by ASME B30.26.
  • Working Load Limit: 5 Ton
MIN QTY: 1

1017516
G-209A
