Specifications
Body Material Carbon Steel
Eye Outer Size 4.19 in
Finish Hot Dipped Galvanized
Inner Length 7 in
Inner Width 5 in
Load Capacity 25 ton
Opening Size 2-7/8 in
Overall Length 12.34 in
Overall Width 9.68 in
Pin Diameter 2.04 in
Pin Material Alloy
Pin Type Bolt
Series G-2130
Size 1-3/4 in

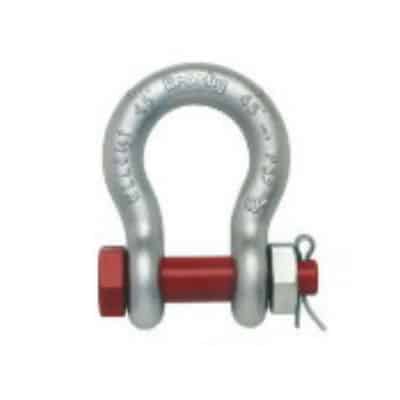

Crosby G-2130 1 3/4 Forged Bolt Type Anchor Shackle 25 Ton WLL Galvanized 1019659
SB#48-01312
Special Order-Shipping Times Vary
WEB PRICE:
$892.24/EA
Bolt Type Anchor Shackles With Thin Head Bolt And Nut With Cotter Pin. Meets The Performance Requirements Of Federal Specification RR-C271F Type IVA, Grade A, Class 3, Except For Those Provisions Required Of The Contractor.
MIN QTY: 1
1019659
G-2130
Crosby
Catalog
