Specifications
Body Material Carbon Steel
Eye Outer Size 3-5/16 in
Finish Hot Dipped Galvanized
Inner Length 5-1/4 in
Inner Width 3.63 in
Load Capacity 13.5 ton
Opening Size 2-1/4 in
Overall Length 9.16 in
Overall Width 7.21 in
Pin Diameter 1.53 in
Pin Material Alloy
Pin Type Bolt
Series G-2130
Size 1-3/8 in

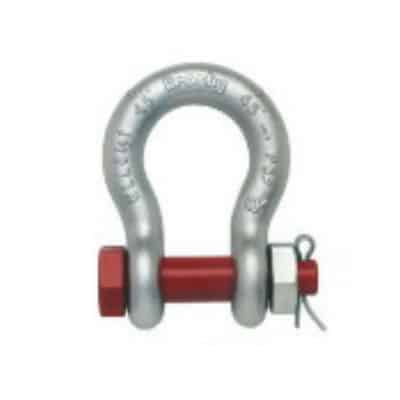

Crosby G-2130 1 3/8 Forged Bolt Type Anchor Shackle 13 1/2 Ton WLL Galvanized 1019613
SB#48-01311
Special Order-Shipping Times Vary
WEB PRICE:
$487.14/EA
Bolt Type Anchor Shackles With Thin Head Bolt And Nut With Cotter Pin. Meets The Performance Requirements Of Federal Specification RR-C271F Type IVA, Grade A, Class 3, Except For Those Provisions Required Of The Contractor.
MIN QTY: 1
1019613
G-2130
Crosby
Catalog
