Specifications
Body Material Carbon Steel
Eye Outer Size 2.38 in
Finish Hot Dipped Galvanized
Inner Length 3-3/4 in
Inner Width 2.69 in
Load Capacity 8.5 ton
Opening Size 1.69 in
Overall Length 6.56 in
Overall Width 5.39 in
Pin Diameter 1.15 in
Pin Material Alloy
Pin Type Bolt
Series G-2130
Size 1 in

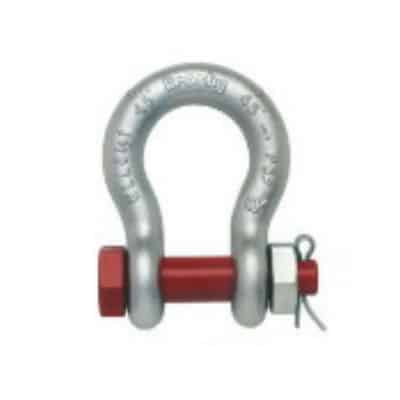

Crosby G-2130 1 Forged Bolt Type Anchor Shackle 8 1/2 Ton WLL Galvanized 1019551
SB#48-00632
Special Order-Shipping Times Vary
WEB PRICE:
$180.88/EA
Bolt Type Anchor Shackles With Thin Head Bolt And Nut With Cotter Pin. Meets The Performance Requirements Of Federal Specification RR-C271F Type IVA, Grade A, Class 3, Except For Those Provisions Required Of The Contractor.
MIN QTY: 1
1019551
G-2130
Crosby
Catalog
