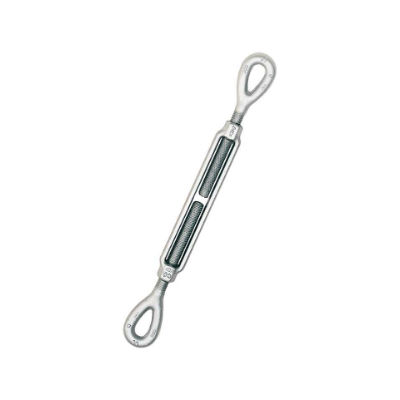

Crosby HG-226 3/4X6 Inch Turnbuckle Eye & Eye Galvanized 1031430
Specifications

Closed Length 18-1/2 in
End/End Eye/Eye
Finish Hot Dipped Galvanized
Material Steel
Series HG-226
Take Up 6 in
Thread Diameter 3/4 in
Working Load 5200 lb

Crosby HG-226 3/4X6 Inch Turnbuckle Eye & Eye Galvanized 1031430

SB#48-02298
Quick Ship
Crosby HG-226 3/4X6 Inch Turnbuckle Eye & Eye Galvanized 1031430

WEB PRICE:

$206.13/EA/EA

HG-226 Eye & Eye Turnbuckles End Fittings Are Quenched And Tempered Or Normalized Bodies Heat Treated By Normalizing.Meets Or Exceeds All Requirements Of ASME B30.26 Including Identification, Ductility, Design Factor, Proof Load And Temperature Requirements. Importantly, These Turnbuckles Meet Other Critical Performance Requirements Including Fatigue Life, Impact Properties And Material Traceability. Lock Nuts Available For All Sizes (Not Included)

  • Working Load Limit: 5200Lbs
  • Turnbuckle eyes are forged elongated, by design, to maximize easy attachment in system and minimize stress in the eye
  • Modified UNJ thread on end fittings for improved fatigue properties.
  • Body has UNC threads.
  • Proof Load is 2.5 times the Working Load Limit. Ultimate Load is 5 times the Working Load Limit
MIN QTY: 1

1031430
HG-226
Crosby
