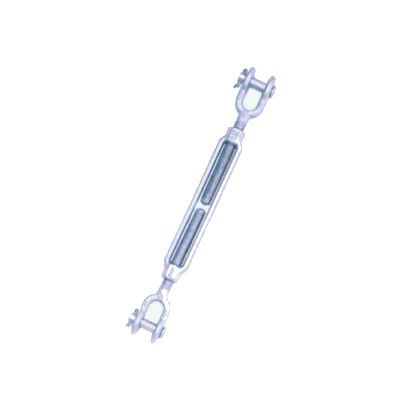

Crosby HG-228 3/8X6 Inch Turnbuckle Jaw & Jaw Galvanized 1032536
Specifications

Closed Length 11-1/2 in
End/End Jaw/Jaw
Finish Hot Dipped Galvanized
Material Steel
Series HG-228
Take Up 6 in
Thread Diameter 3/8 in
Working Load 1200 lb

Crosby HG-228 3/8X6 Inch Turnbuckle Jaw & Jaw Galvanized 1032536

SB#48-21383
Special Order-Shipping Times Vary
Crosby HG-228 3/8X6 Inch Turnbuckle Jaw & Jaw Galvanized 1032536

WEB PRICE:

$103.33/EA/EA

HG-228 Jaw & Jaw Turnbuckles End Fittings Are Quenched And Tempered Or Normalized Bodies Heat Treated By Normalizing.Meets Or Exceeds All Requirements Of ASME B30.26 Including Identification, Ductility, Design Factor, Proof Load And Temperature Requirements. Importantly, These Turnbuckles Meet Other Critical Performance Requirements Including Fatigue Life, Impact Properties And Material Traceability. Lock Nuts Available For All Sizes (Not Included)

  • Working Load Limit: 1200Lbs
  • Forged jaw ends are fitted with bolts and nuts for 1/4In. through 5/8In., and pins and cotters on 3/4In. through 2-3/4In. sizes
  • Modified UNJ thread on end fittings for improved fatigue properties.
  • Body has UNC threads.
  • Proof Load is 2.5 times the Working Load Limit. Ultimate Load is 5 times the Working Load Limit
MIN QTY: 1

1032536
HG-228
Crosby
