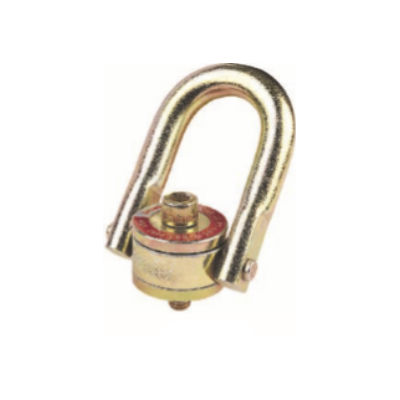

Crosby HR-125 1-1/4-7X4.5 Swivel Hoist Ring 15000Lb WLL 1016975

Name: Crosby HR-125 1-1/4-7X4.5 Swivel Hoist Ring 15000Lb WLL 1016975
Brand: Crosby
SKU: 48-02033
Availability: InStock

SB#48-02033

Special Order-Shipping Times Vary

WEB PRICE:

$1,369.47/EA/EA

The Working Load Limit And Recommended Torque Value Are Permanently Stamped Into Each Washer. Washer Is Color Coded For Easy Identification: Red – UNC Thread

Individually Proof Tested to 2-1/2 times Working Load Limit.
Bolt specification is an Alloy socket head cap screw to ASTM A 574.
Torque in Ft. Lbs.: 470
Thread Projection Length: 2.21
Working Load Limit: 15000 Lbs.

MIN QTY: 1

Crosby

1016975

HR-125

Catalog
