Specifications
Bail Diameter 0.94 in
Dimensions 4.87 in W
Installation Torque 100 ft-lb
Load Capacity 7000 lb
Pivot Angle 180 deg
Series HR-125
Swivel Angle 360 deg
Thread Size 3/4-10 UNC

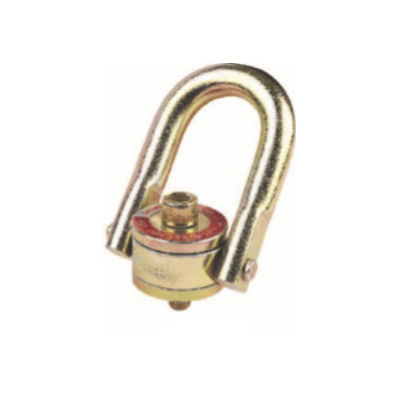

Crosby HR-125 3/4-10X3.5 Swivel Hoist Ring 7000Lb WLL 1016946
SB#48-02030
Quick Ship
WEB PRICE:
$837.88/EA/EA
The Working Load Limit And Recommended Torque Value Are Permanently Stamped Into Each Washer. Washer Is Color Coded For Easy Identification: Red – UNC Thread
- Individually Proof Tested to 2-1/2 times Working Load Limit.
- Bolt specification is an Alloy socket head cap screw to ASTM A 574.
- Torque in Ft. Lbs.: 100
- Thread Projection Length: 1.64
- Working Load Limit: 7000 Lbs.
MIN QTY: 1
Crosby
1016946
HR-125
