Specifications

Jaw Opening 3/4 in
Load Capacity 1 ton
Material Welded Alloy Steel
Overall Width 5 in
Series IPU10
Type Universal Vertical

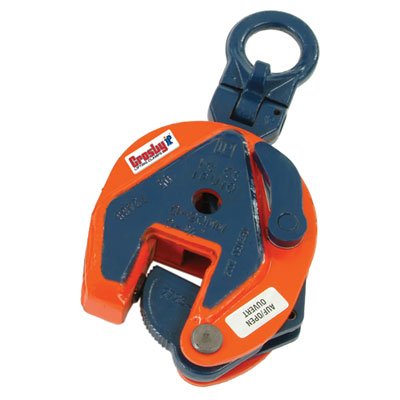

Crosby IPU10 1 Ton Universal Vertical Lifting Plate Clamp 0-3/4 Inch Jaw Capacity 2701663

SB#48-01283
Special Order-Shipping Times Vary

WEB PRICE:

$1,326.09/EA/EA

The IPU10 Vertical Lifting Clamp Is Used For Lifting, Turning, Moving Or Vertical Transfer Of Sheet, Plates, Or Fabrications From Horizontal To Vertical And Down To Horizontal (180°) As Needed. The Hinged Hoisting Eye Allows For The Clamp To Place And Lift The Load From Any Direction, Or With A Multiple Leg Sling Without Side-Loading The Clamp.

  • Welded alloy steel body for strength and smaller size. Forged alloy components, where required
  • Individually Proof Tested to 2 times the Working Load Limit with certification.
  • Full 180° turning range for material transfer, turning or moving.
  • Lock open, lock closed ability with latch for pretension on material and then release of material.
MIN QTY: 1

Crosby

2701663
IPU10
Product Data Sheet
