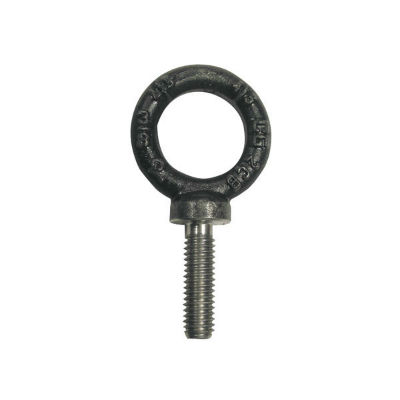

Crosby S-279 1 1/8X2 3/4 Inch Forged Shoulder Type Machinery Eye Bolt 9900257
Specifications

Diameter - Thread Size 1-1/8-7
Inside Eye Diameter 2-1/4 in
Material Forged Steel
Measurement System Imperial
Outside Eye Diameter 4.19 in
Overall Length 7.2 in
Series S-279
Shank Length 2-3/4 in
Thread Type UNC
Type Full Threaded Machinery Shoulder
Working Load 15000 lb

Crosby S-279 1 1/8X2 3/4 Inch Forged Shoulder Type Machinery Eye Bolt 9900257

SB#38-00229
Special Order-Shipping Times Vary
Crosby S-279 1 1/8X2 3/4 Inch Forged Shoulder Type Machinery Eye Bolt 9900257

WEB PRICE:

$140.67/EA/EA

Forged Steel Quenched & Tempered Shoulder Type Machinery Eye Bolt. Recommended For In-Line Pull. Fatigue Rated At 1-1/2 Times The WLL at 20000 Cycles. Meets Or Exceeds All Requirements Of ASME B30.26

  • Working Load Limit 15000 Lbs
  • Ultimate Load is 5 times the Working Load Limit.
  • Maximum Proof Load is 2 times the Working Load Limit
  • All bolts threaded UNC
  • These meet other critical performance requirements including fatigue life, impact properties and material traceability not addressed by ASME B30.34
MIN QTY: 1

Crosby

9900257
S-279
