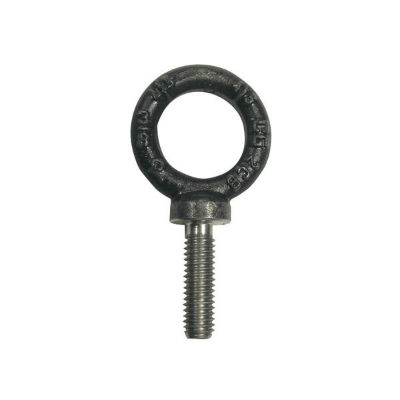

Crosby S-279 1/2X1 1/2 Inch Forged Shoulder Type Machinery Eye Bolt 9900217
Specifications

Material Forged Steel
Size 1/2X1-1/2
Diameter 1/2 In.
Length 1-1/2 In.

Crosby S-279 1/2X1 1/2 Inch Forged Shoulder Type Machinery Eye Bolt 9900217

SB#38-00224
Special Order-Shipping Times Vary
Crosby S-279 1/2X1 1/2 Inch Forged Shoulder Type Machinery Eye Bolt 9900217

WEB PRICE:

$21.91/EA/EA

Forged Steel Quenched & Tempered Shoulder Type Machinery Eye Bolt. Recommended For In-Line Pull. Fatigue Rated At 1-1/2 Times The WLL at 20000 Cycles. Meets Or Exceeds All Requirements Of ASME B30.26

  • Working Load Limit 2600 Lbs
  • Ultimate Load is 5 times the Working Load Limit.
  • Maximum Proof Load is 2 times the Working Load Limit
  • All bolts threaded UNC
  • These meet other critical performance requirements including fatigue life, impact properties and material traceability not addressed by ASME B30.29
MIN QTY: 1

9900217
S-279
