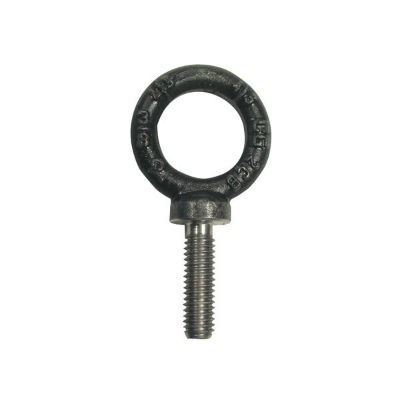

Crosby S-279 3/4X2 Inch Forged Shoulder Type Machinery Eye Bolt 9900235

Name: Crosby S-279 3/4X2 Inch Forged Shoulder Type Machinery Eye Bolt 9900235
Brand: Crosby
SKU: 38-00226
Availability: InStock

SB#38-00226

Ready To Ship

WEB PRICE:

$39.05/EA/EA

Forged Steel Quenched & Tempered Shoulder Type Machinery Eye Bolt. Recommended For In-Line Pull. Fatigue Rated At 1-1/2 Times The WLL at 20000 Cycles. Meets Or Exceeds All Requirements Of ASME B30.26

Working Load Limit 7200 Lbs
Ultimate Load is 5 times the Working Load Limit.
Maximum Proof Load is 2 times the Working Load Limit
All bolts threaded UNC
These meet other critical performance requirements including fatigue life, impact properties and material traceability not addressed by ASME B30.31

MIN QTY: 1

9900235

S-279
