Specifications

Chamfer Type Semi-Bottoming

Class of Fit 6H/D5

Cutting Direction Right Hand

Finish/Coating Gold

Flute Direction Right Hand

Material HSS-E

Material Application Tough or Abrasive Materials

Measurement System Metric

Number of Flutes 3

Overall Length 66 mm

Series E002

Shank Diameter 6.3 mm

Thread Length 10 mm

Thread Limit H6

Thread Size M6x1

Thread Standard UNC

Through Coolant (Yes/No) No

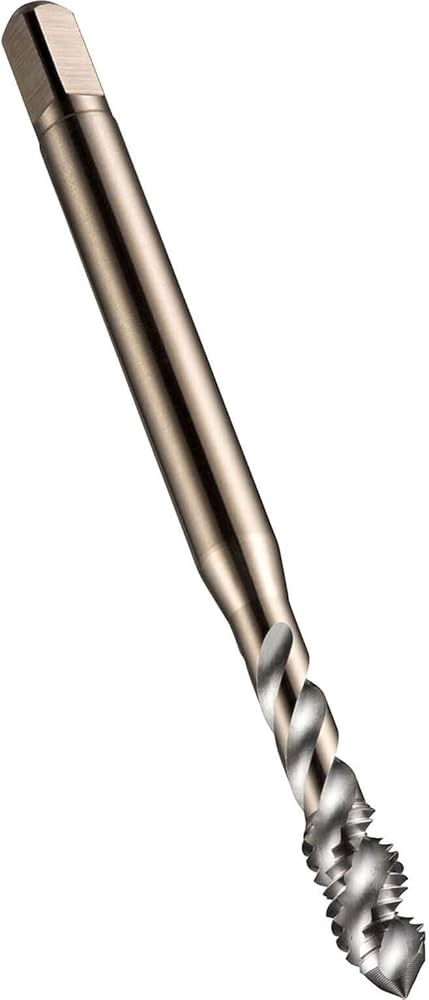

Dormer E002 6mm – 1.0 MTT-X High Speed Steel 3 Flute Spiral Flute Semi-Bottoming Machine Tap Gold Oxide 5974320

Name: Dormer E002 6mm - 1.0 MTT-X High Speed Steel 3 Flute Spiral Flute Semi-Bottoming Machine Tap Gold Oxide 5974320
Brand: Dormer Pramet
SKU: 20-08128
Price: 21.30 CAD
Availability: InStock

SB#20-08128

Ready To Ship

WEB PRICE:

$21.30/EA/EA

The Dormer MTT-X E002/MTT-X E012 Powdered-Metal Steel Spiral Flute Tap Has A Round Shank With A Square End, Gold Oxide Finish, And A Modified Bottoming Chamfer, And Is Used To Create Metric Right-Hand Threads In A Range Of Materials, With Best Performance In Steel, Aluminum And Magnesium. The Tap Is Designed For Efficient Threading Of Metric Blind Holes.

Powdered-metal steel for performance approaching that of solid carbide tools, with the toughness and shock-resistance of high-speed steel
Spiral flute tap pulls chips back from the tip of the tool and out of the hole to prevent clogging
Gold oxide is a low-temperature heat treatment that reduces grinding stress within the tool.
The modified bottoming chamfer has additional length to reduce chip load, add tool life in difficult-to-machine materials, and permit higher tapping speeds.
The round shank with square end helps to minimize rotation in the tool holder.
