Specifications

Chamfer Type Semi-Bottoming

Class of Fit 6H

Cutting Direction Right Hand

Finish/Coating Steam Tempered

Flute Direction Right Hand

Material HSS-E

Material Application Abrasive or Harder Ferrous Materials

Measurement System Metric

Number of Flutes 3

Overall Length 80 mm

Series E003

Shank Diameter 10 mm

Thread Length 15 mm

Thread Size M10x1.5

Thread Standard Coarse

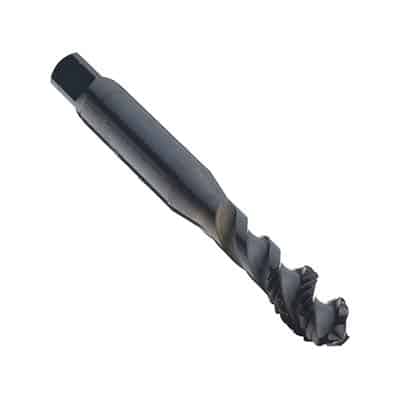

Dormer E003 10mm – 1.5 High Speed Steel 3 Flute Spiral Flute Semi-Bottoming Machine Tap Steam Oxide 5974329

Name: Dormer E003 10mm - 1.5 High Speed Steel 3 Flute Spiral Flute Semi-Bottoming Machine Tap Steam Oxide 5974329
Brand: Dormer Pramet
SKU: 20-05640
Price: 29.24 CAD
Availability: InStock

SB#20-05640

Ready To Ship

WEB PRICE:

$29.24/EA/EA

The Dormer E003 Powdered-Metal Steel Spiral Flute Tap Has A Round Shank With A Square End, Black Oxide Finish, And A Modified Bottoming Chamfer, And Is Used To Create Metric Right-Hand Threads In A Range Of Materials, With Best Performance In Steel, Aluminum And Magnesium. The Tap Is Designed For Efficient Threading Of Metric Blind Holes.

Premium HSS-E-PM material - powder metal high speed cobalt provides superior performance and extended tool life
Steam Tempered finish - prevents work piece material from sticking to the cutting edge

MIN QTY: 1
