Specifications

Chamfer Type Semi-Bottoming
Class of Fit 3B/H3
Cutting Direction Right Hand
Finish/Coating Steam Tempered
Flute Direction Right Hand
Material HSS-E
Material Application Abrasive or Harder Ferrous Materials
Measurement System Imperial
Number of Flutes 3
Overall Length 3-13/16 in
Series E028
Shank Diameter 0.48 in
Thread Length 0.708 in
Thread Size 2005-08-11
Thread Standard UNC

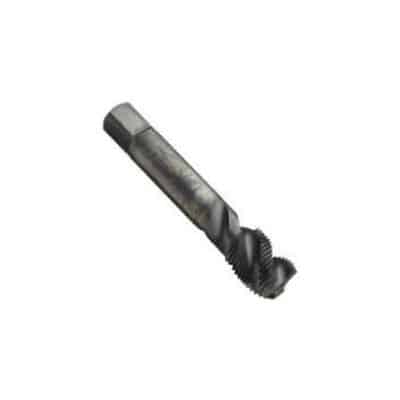

Dormer E028 5/8-11 MTT-X High Speed Steel 3 Flute Spiral Flute Semi-Bottoming Machine Tap 5974043

SB#20-35569
Quick Ship

WEB PRICE:

$120.23/EA/EA

The Dormer MTT-X E028 Powdered-Metal Steel Spiral Flute Tap Has A Round Shank With A Square End, Black Oxide Finish, And A Modified Bottoming Chamfer, And Is Used To Create Right-Hand Threads In A Number Of Materials, With Best Performance In Steel. The Black Oxide Finish Improves Lubricity, Resists Corrosion, And Will Not Chip Or Flake. Black Oxide Also Helps To Prevent Buildup And Welding Of Material On The Tap’s Cutting Edge When Working With Iron And Steel. The Modified Bottoming Chamfer On This Tool Has Additional Length To Reduce Chip Load, Add Tool Life In Difficult-To-Machine Materials, And Permit Higher Tapping Speeds.

  • Black Oxide Or Steam Oxide, Is A Surface Treatment That Prevents Chip Building, Galling And Welding On The Workpiece. It Is Commonly Used On Low Carbons, Stainless Steel And Ferrous Metals.
  • Powdered-Metal Steel For Performance Approaching That Of Solid Carbide Tools, With The Toughness And Shock-Resistance Of High-Speed Steel
MIN QTY: 1

Dormer Pramet

5974043
E028
Dormer
Specification Sheet
Catalog
