Specifications

Material Stainless Steel
Size 5 In.
Diameter 4.6 In.
Width 4.9 In.
Length 9.7 In.

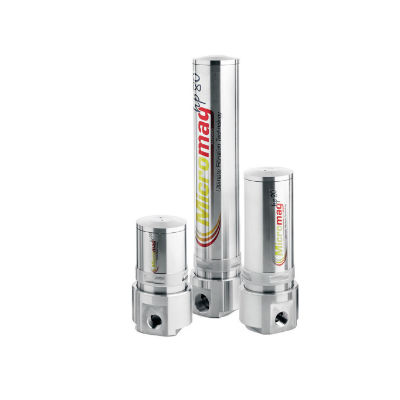

Eclipse Magnetics MM5/HP/80NPT High Pressure Magnetic Filter MM5/HP/80NPT

SB#48-02153
Special Order-Shipping Times Vary

WEB PRICE:

$2,115.62/EA/EA

Micromag HP80 Magnetic Filter Provides All The Same Operational Benefits Of The Standard Micromag But Is Designed For Some High Pressure Through-Spindle Coolant Filtration Applications, Where The Smallest Of Particles Can Damage Seals, Spindles, And Reduce Efficiency Of The Cutting Tool. With A Stainless Steel Construction The Micromag Hp80 Filter Is Also Ideal For Harsh Chemical Environments And Wash System Applications.

  • Flow rate of up to 18 gallons per minute
  • 2.2 lbs contamination capacity
  • Sub-micron filtration, High intensity rare earth magnetic material
  • High Pressure (1160psi) and large holding capacity
  • Environmentally responsible, no consumables.
MIN QTY: 1

MM5/HP/80NPT
Micromag HP80
Eclipse Tools
