Specifications
Thread Size #12-24
Thread Diameter Size #12
Thread Standard UNC
Thread TPI 24
Thread Tolerance Class 2B/3B
Tap Chamfer Lght 2 -3 P
Tap Chamfer Form C
Applicable Material Universal Materials
Coating NE2
Flute Count 3
Shank Tolerance h9

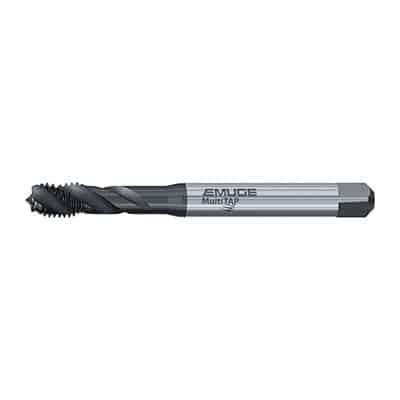

Emuge BU533200.5008 12-24 Spiral Flute MultiTAP Blind Hole NE2
SB#20-12988
Quick Ship
WEB PRICE:
$33.57/EA/EA
Multitap Is The Industry’s First General Purpose, High Performance Tap. Multitap Is Suitable For Use With All Machines And Will Cut Almost Any Material With A Hardness Of 32RC Or Less! Multitap Is Also Uniquely Designed To Produce Threads That Simultaneously Satisfy Both 2B And 3B Classes Of Fit. Available In Spiral Point, Spiral Flute And Roll-Form Variations, Multitap Is The Ideal Tap For A Job Shop Or A Manufacturer Who Works With Short- And Medium Run Threading Applications Across A Wide Spectrum Of Materials.
MIN QTY: 1
Emuge-Franken MultiTAP
BU533200.5008
MultiTAP
Emuge-Franken
