Specifications

Domestic/Import Import
End Style Push-to-Connect x FNPT
Finish Nickel Plated
Material Brass
Nominal Size 1/4 in
Pressure Rating 150 psi
Series UNIQUIK S20
Temperature Rating -40 to 71 deg C
Type 3-in-1

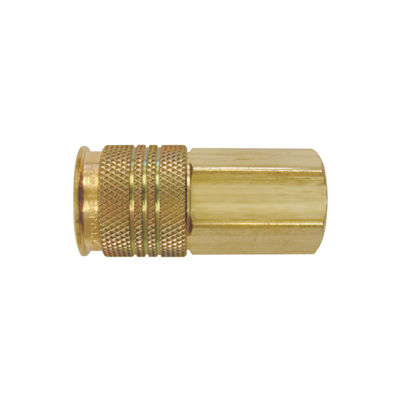

Topring 20.440 1/4 NPT Female Pipe Uniquik Universal Brass Automatic 1/4 Industrial Coupler

SB#60-20524
Ready To Ship

WEB PRICE:

$18.75/EA/EA

UNIQUIK (3in1) Accepts 1/4 Industrial, 1/4 Truflate, And ARO 210 Type Plugs. Automatic Push-To-Connect Operation.

  • Air Flow: 35 SCFM Maximum PSI: 150
  • Sleeve Guard Protects Against Accidental Disconnection When The Coupler Is Dragged On The Floor Or Over Obstructions.
  • Ball Locking Mechanism Insuring An Effective And Secure Connection.
  • Deep Knurled Socket Sleeve For Positive Gripping
  • Corrosion-Resistant Brass
MIN QTY: 1

20.44
20
Topring
Technical Data Sheet
