Specifications

Chamfer Type Semi-Bottoming

Class of Fit 6H/D4

Cutting Direction Right Hand

Finish/Coating Gold

Flute Direction Right Hand

Material HSS-E

Material Application Tough or Abrasive Materials

Measurement System Metric

Number of Flutes 3

Overall Length 53 mm

Series E002

Shank Diameter 4 mm

Thread Length 7 mm

Thread Limit H6

Thread Size M4x0.7

Thread Standard UNC

Through Coolant (Yes/No) No

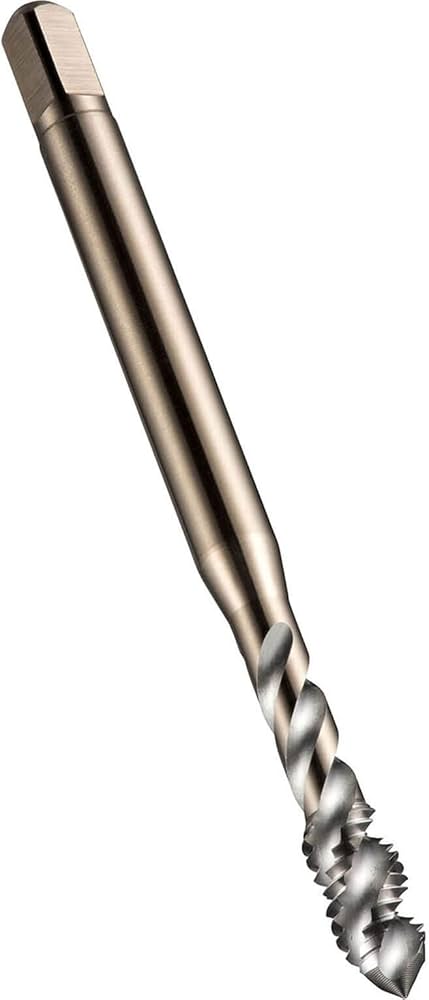

Dormer E002 4mm – 0.7 MTT-X High Speed Steel 3 Flute Spiral Flute Semi-Bottoming Machine Tap Gold Oxide 5974312

Name: Dormer E002 4mm - 0.7 MTT-X High Speed Steel 3 Flute Spiral Flute Semi-Bottoming Machine Tap Gold Oxide 5974312
Brand: Dormer Pramet
SKU: 20-08126
Price: 18.93 CAD
Availability: InStock

SB#20-08126

Ready To Ship

WEB PRICE:

$18.93/EA/EA

The Dormer MTT-X E002/MTT-X E012 Powdered-Metal Steel Spiral Flute Tap Has A Round Shank With A Square End, Gold Oxide Finish, And A Modified Bottoming Chamfer, And Is Used To Create Metric Right-Hand Threads In A Range Of Materials, With Best Performance In Steel, Aluminum And Magnesium. The Tap Is Designed For Efficient Threading Of Metric Blind Holes.

Powdered-metal steel for performance approaching that of solid carbide tools, with the toughness and shock-resistance of high-speed steel
Spiral flute tap pulls chips back from the tip of the tool and out of the hole to prevent clogging
Gold oxide is a low-temperature heat treatment that reduces grinding stress within the tool.
The modified bottoming chamfer has additional length to reduce chip load, add tool life in difficult-to-machine materials, and permit higher tapping speeds.
The round shank with square end helps to minimize rotation in the tool holder.
