Specifications
Material HSS
Coating / Finish Gold Oxide
Size 7/16-14
Diameter 7/16 In.
Length 3-5/32 In.
Flute / Thread Length .6299 In.
Limits H3
No. Of Flutes 3
Flute Style Spiral Flute
Thread Coarse
Chamfer Semi-Bottoming
14

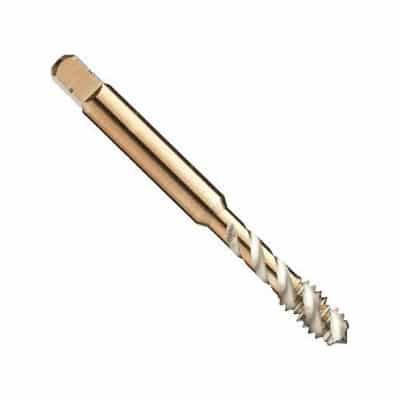

Dormer E027 7/16-14 MTT-X High Speed Steel 3 Flute Spiral Flute Semi-Bottoming Machine Tap 0581575
SB#20-32736
Special Order-Shipping Times Vary
WEB PRICE:
$60.68/EA/EA
The Dormer MTT-X E027 Spiral Flute Tap Has A Round Shank With A Square End And A Modified Bottoming Chamfer, And Is Used To Create Right-Hand Threads In A Range Of Materials, With Best Performance In Steel, Copper, Brass, Aluminum, And Magnesium. The 48-Degree Spiral Flutes Of This Tap Pull Chips Back From The Tip Of The Tool, Up And Out Of The Hole To Prevent Clogging, Making It Suitable For Blind Or Bottoming Holes With Only One Opening.
MIN QTY: 1
581575
E027
